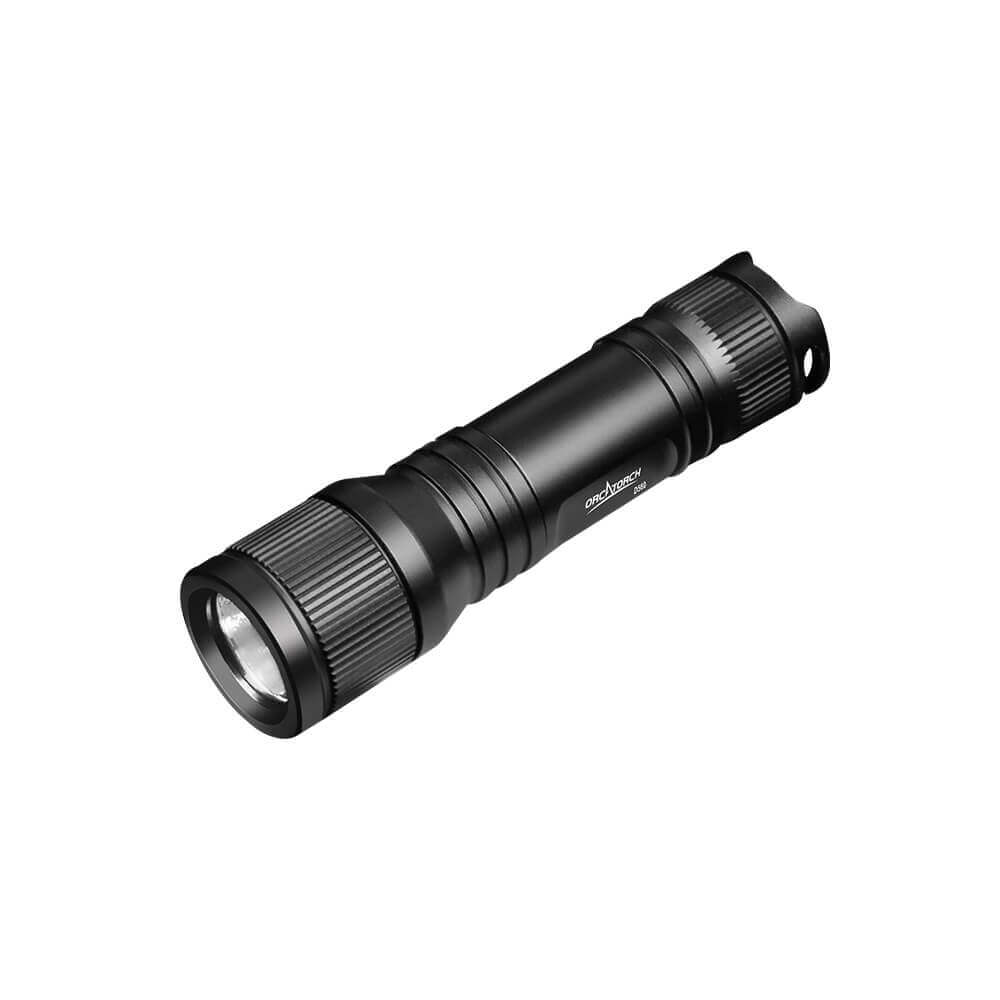

OrcaTorch D560 – 700 Lumens Dive Torch

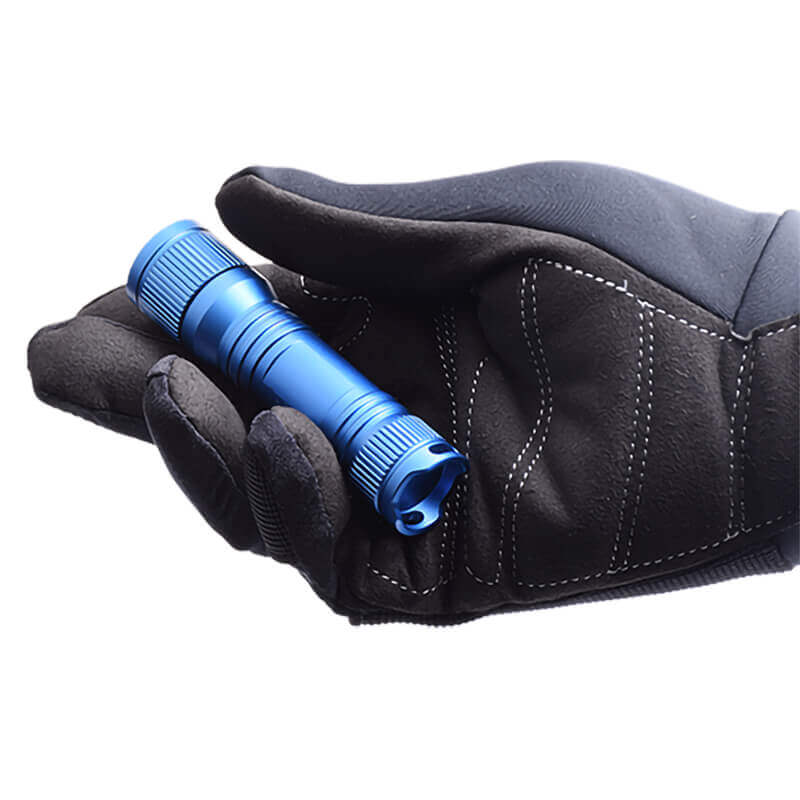

The OrcaTorch D560 700 Lumens Dive Torch is a very compact, only 92mm long, rugged dive torch. Built with an aluminium body for durability and a twist head for on/off the D560 is a great back up torch or pocket torch for all divers
The OrcaTorch D560 can operate with either a standard AA battery or a rechargeable 14500 Li-ion battery. The maximum output can reach 700 lumens when using the Li-ion 14500 but this reduces the burn time to 1hr. When using the AA battery the burn time increases to 1hr 25mins and the power is reduced.

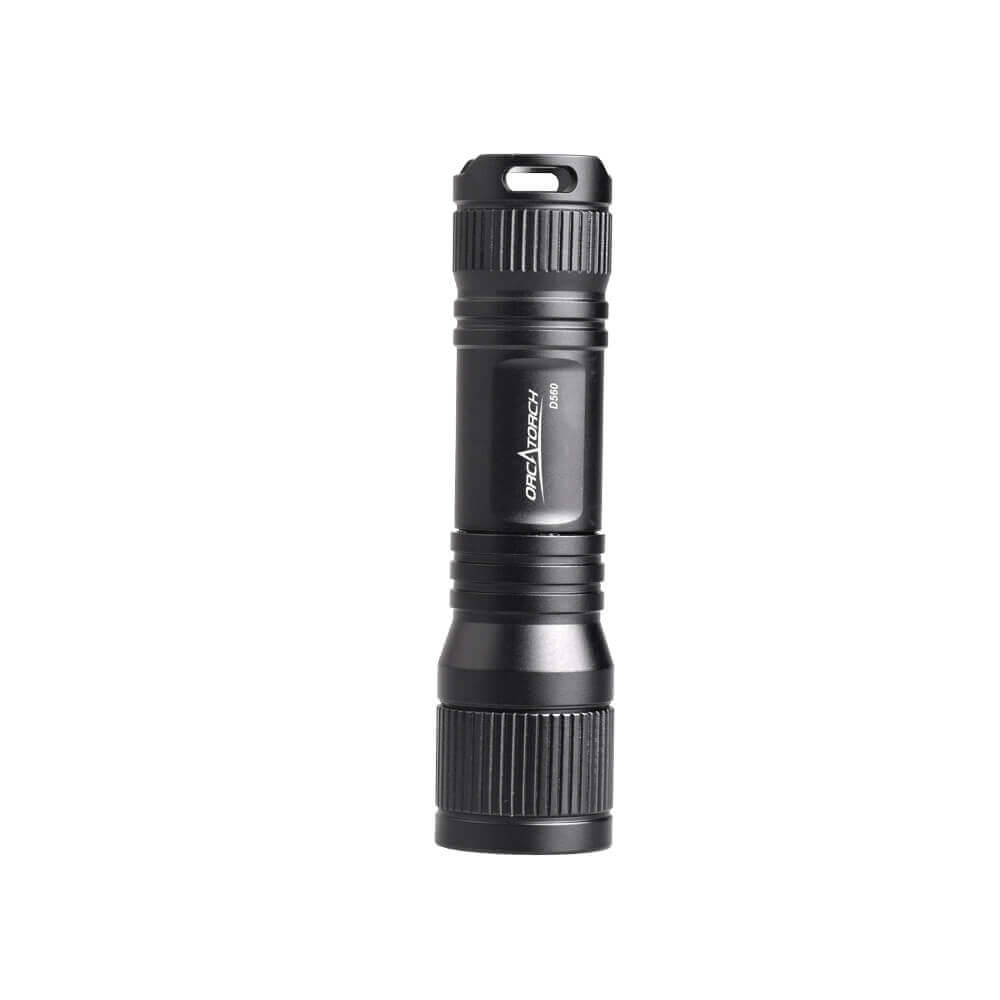

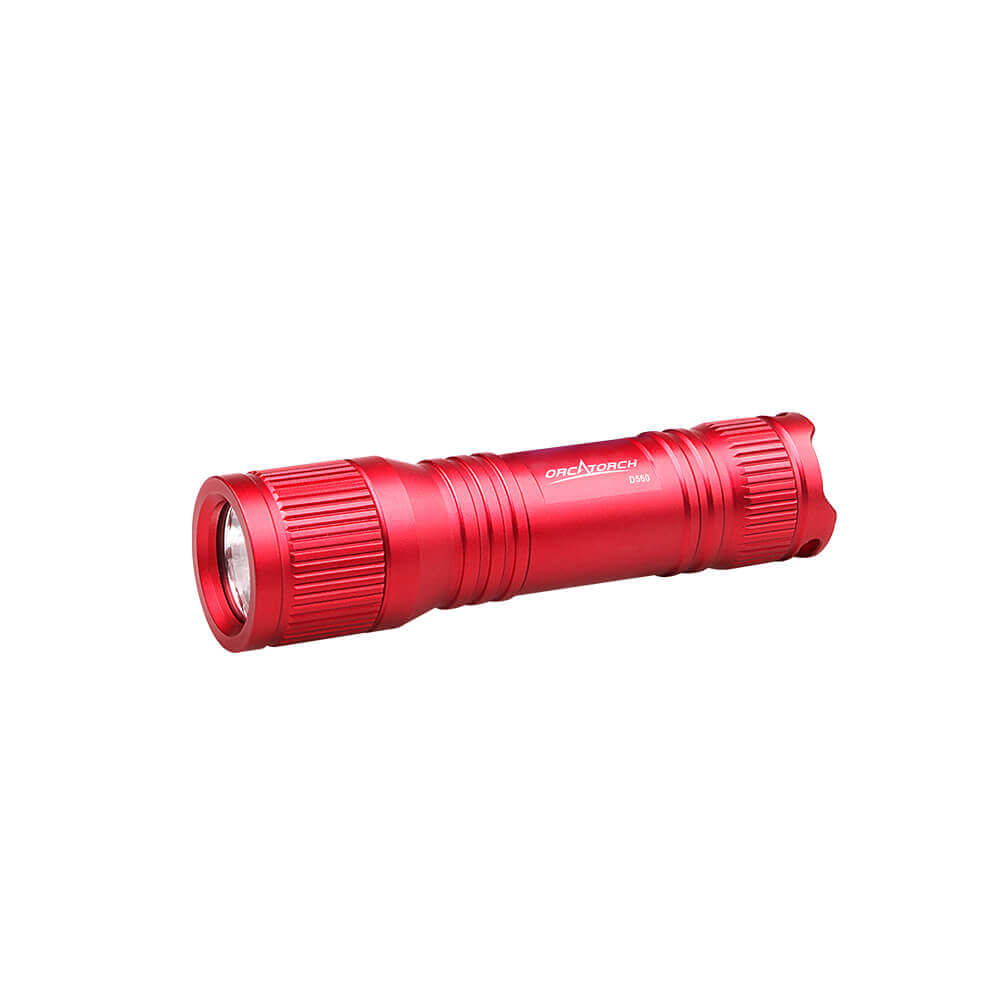

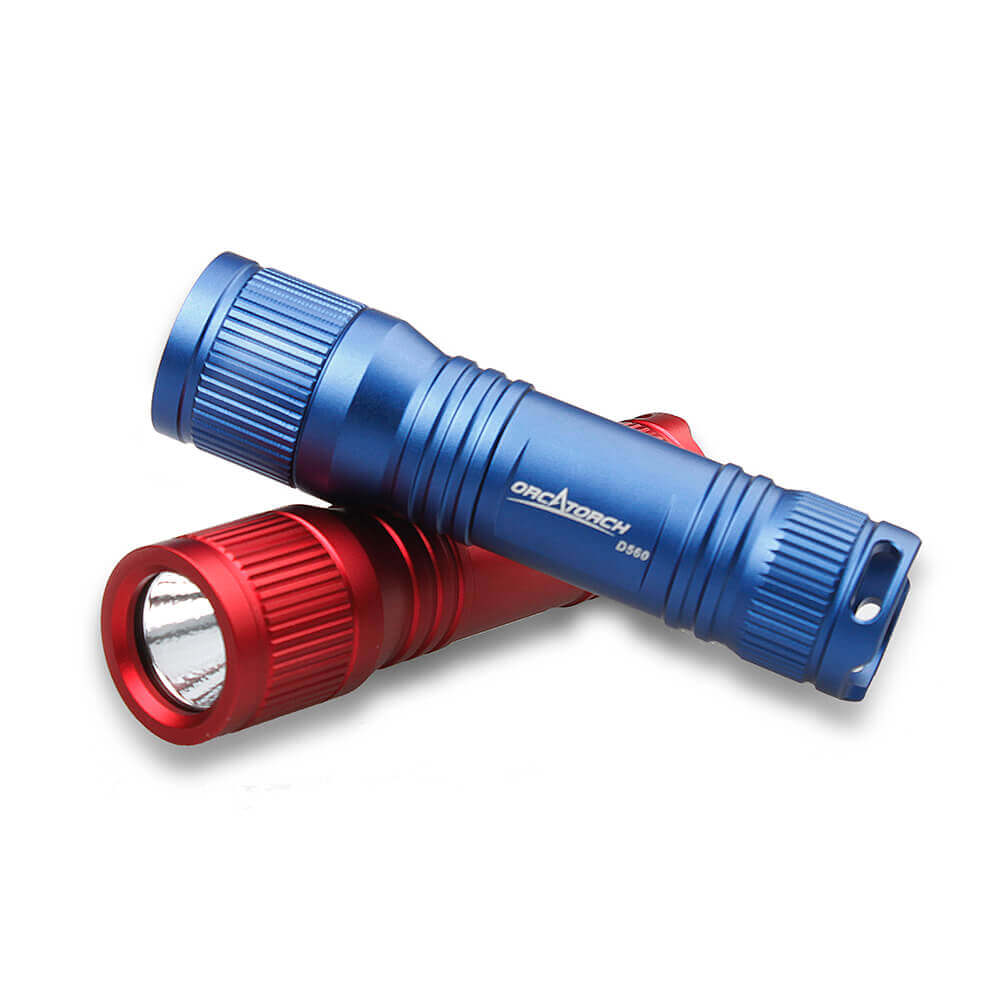

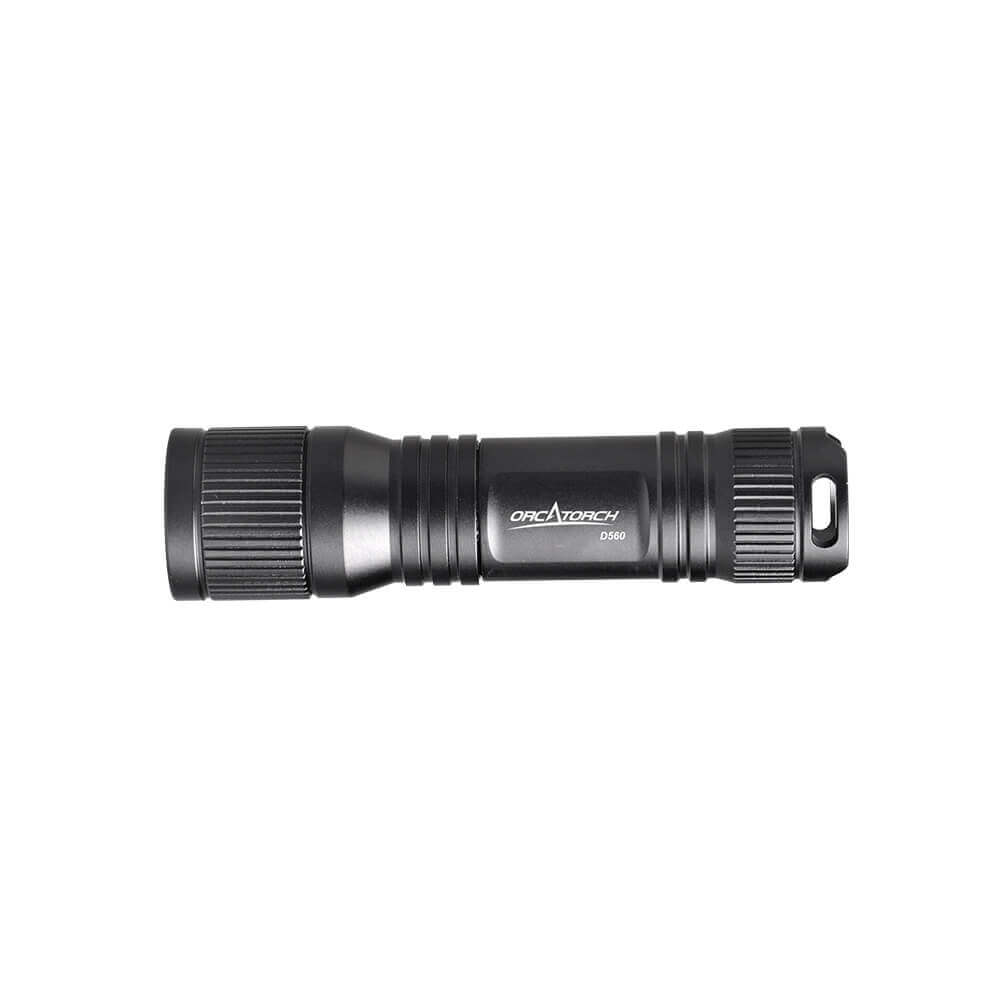

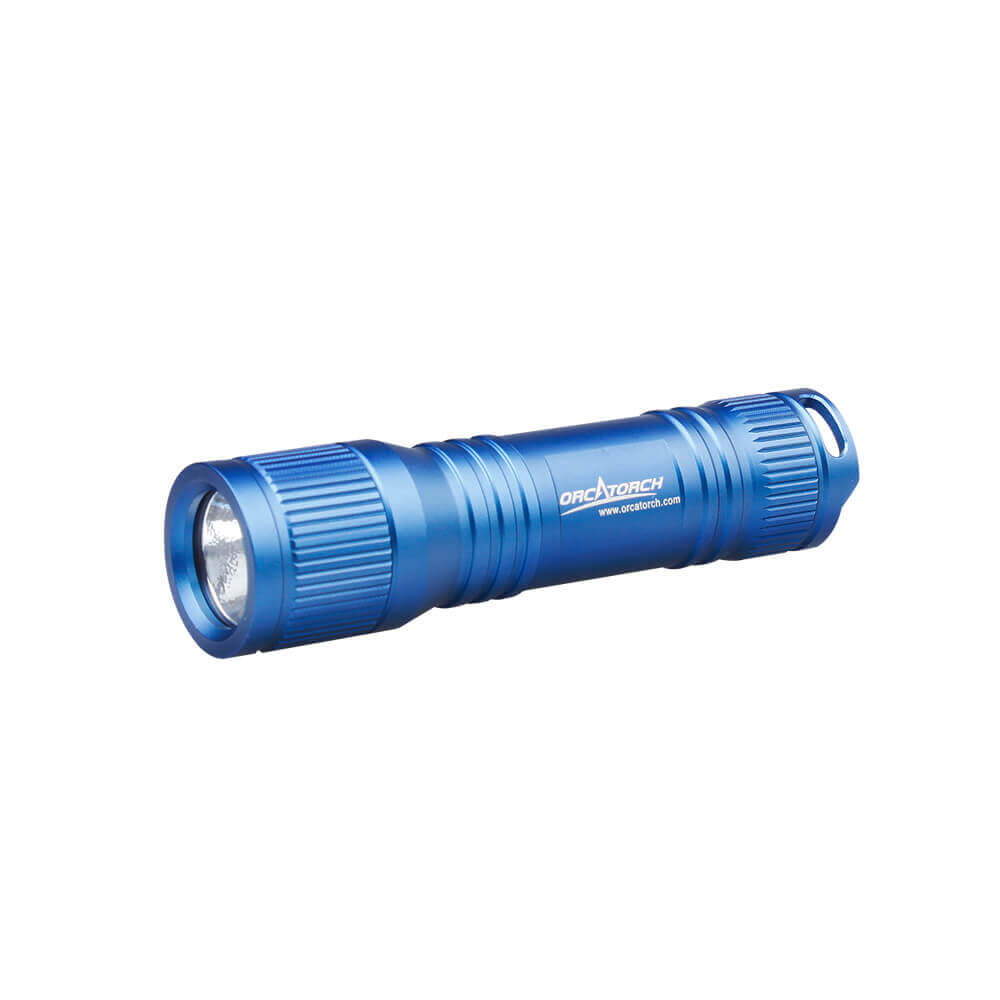

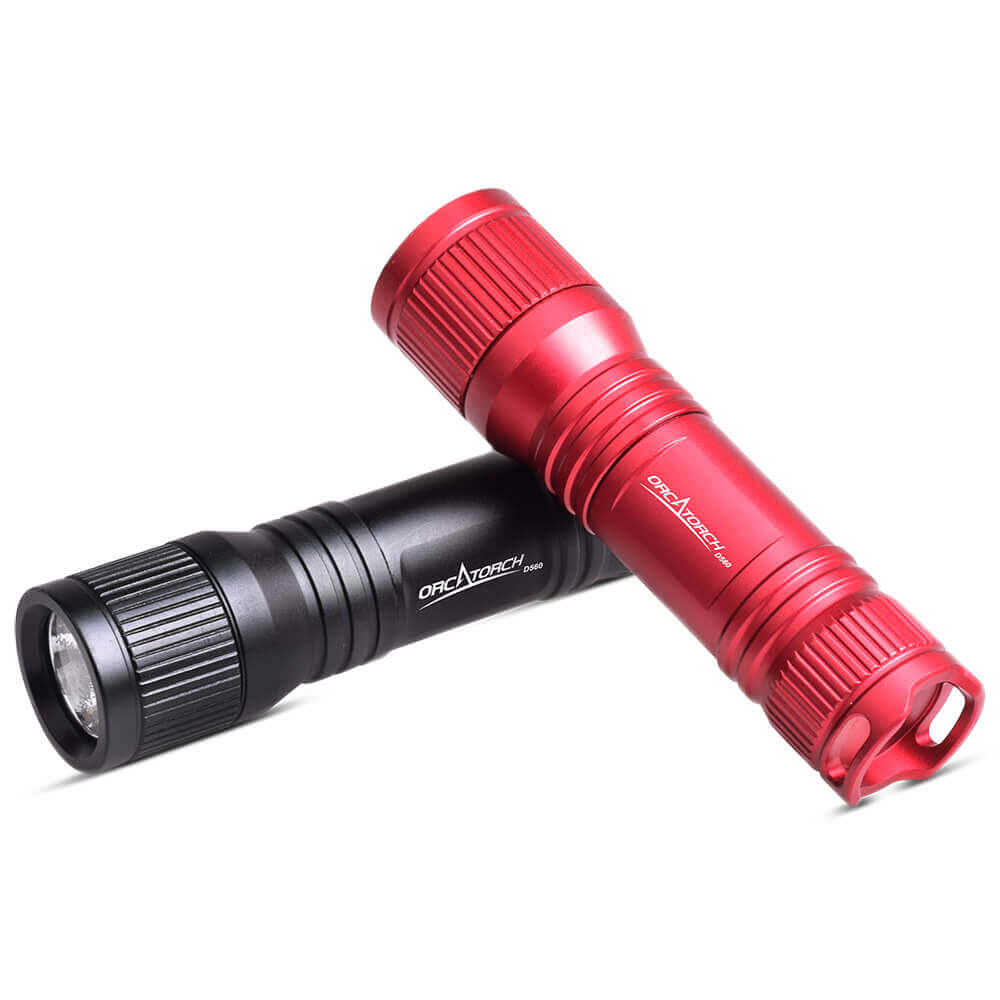

The OrcaTorch D560 is operated by a twist of the torch head. With a double O-Ring seal and tough aluminium body the D560 is ideal to leave in your BCD or Drysuit pocket ready to go! It even comes in 3 colours black, red and blue.

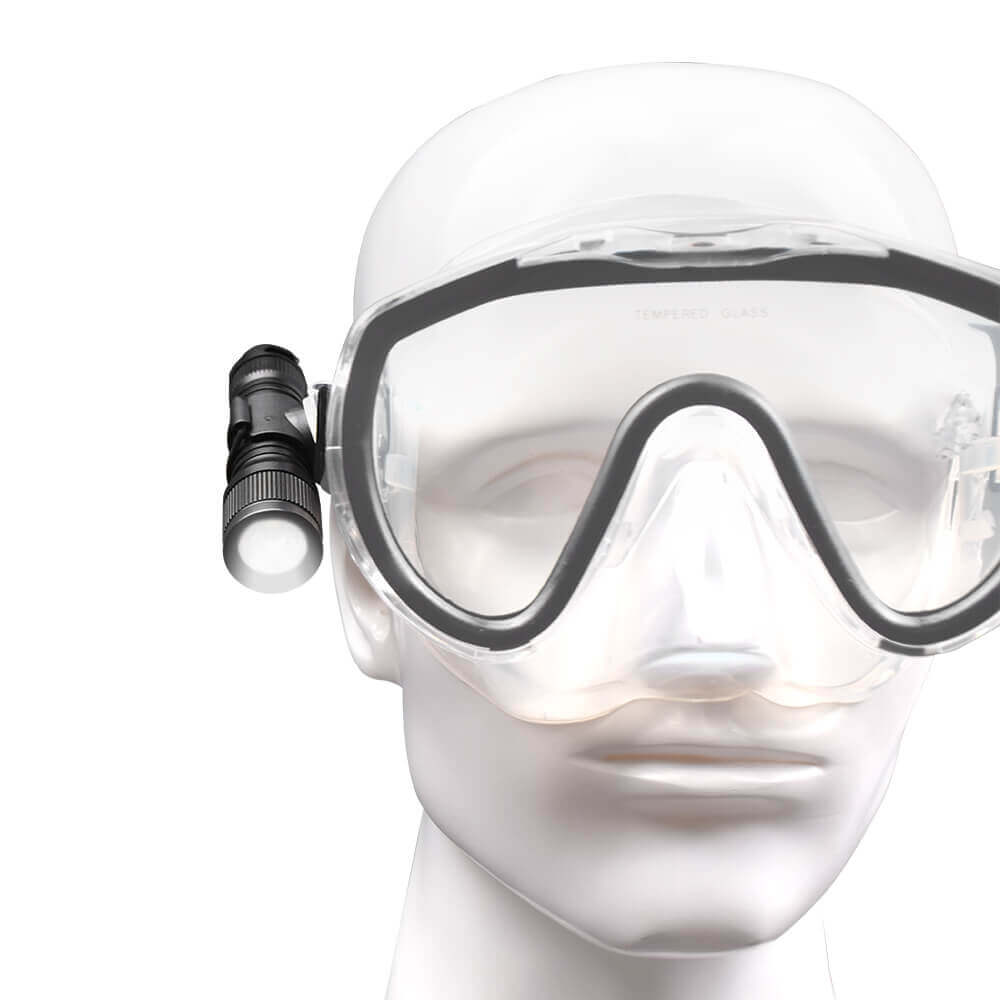

Fit the D560 to your mask for hands free operation using the OrcaTorch MX05 Mask Mount Here
OrcaTorch D560 Dive Light – Features
- Cree XM-L2(U4) LED, 700 lumens output
- Uses a single AA battery or 14500 Li-ion battery
- Mechanically head rotary switch offers high reliability underwater
- Water pressure resistant construction, depth rated to 150 meters
- High efficiency constant current circuit, constant brightness
- Reverse polarity protection, to protect from improper battery installation
- Over-discharge protection function
- Constructed from high-strength A6061-T6 aluminum
- Mil-Spec Type III hard anodized finish for durability and corrosion resistance
- Two sides coated toughened glass with high water pressure resistance under deep water
OrcaTorch D560 – Video
OrcaTorch D560 – Technical Information
| ANSI/NEMA FL1 | AA Battery | 14500 Battery | |
| Output | 180lumen | 700lumen | |
|---|---|---|---|
| Runtime | 1h 25mins | 1h | |
| Beam Distance | 73m（on land） | 119m (on land) | |
| Intensity | 1320cd | 3520cd | |
| Impact Resistance | 1m | ||
| Waterproof | Underwater 150m | ||
| Working Voltage | 0.8-4.2V | ||
| Dimension | 92mm(Length) x 20mm(Diameter) x 24mm(Head) | ||
| Net Weight | 47.5g（Excluding Battery） | ||

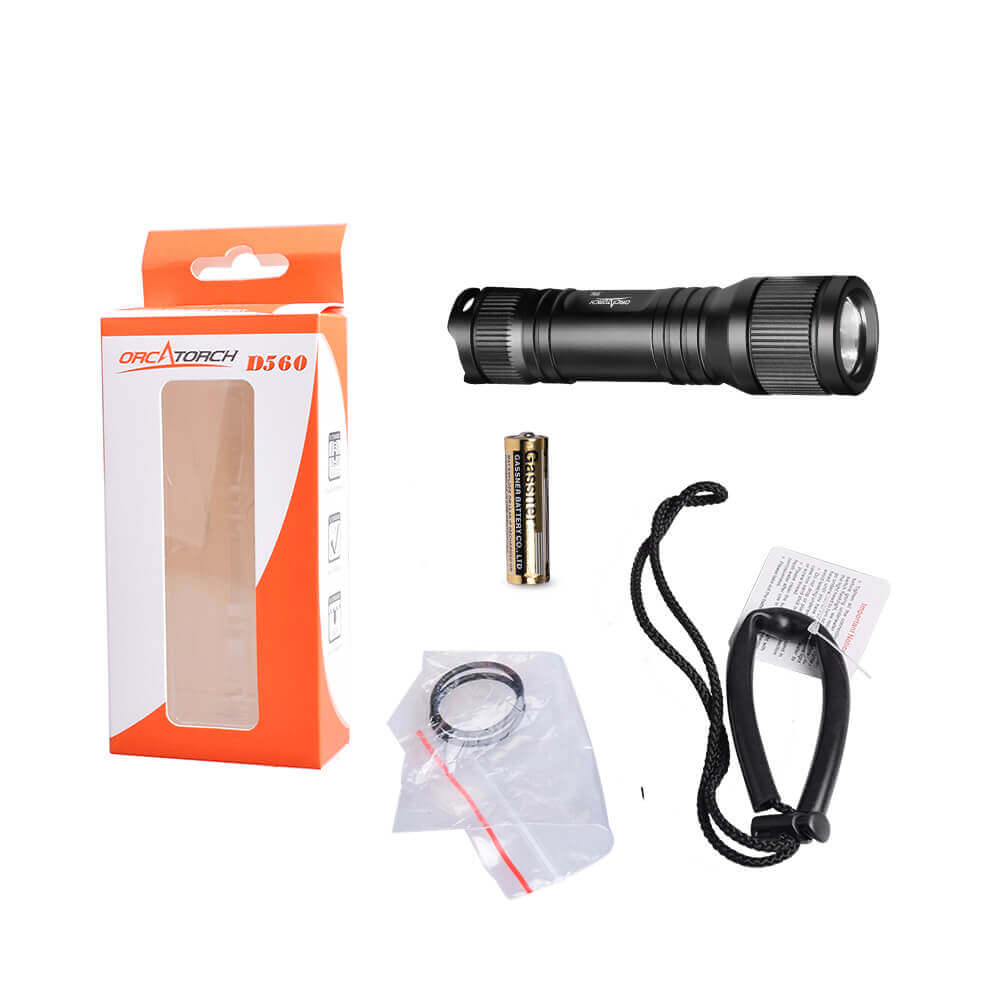

| Accessories | O-rings, Lanyard,1*AA battery | ||
Notice: Stated data has been measured according to the international flashlight test standards ANSI/NEMA FL1 using one AA Ni-MH battery (1.2V, 2450mAh) and one OrcaTorch 14500 Li-ion battery (3.7V, 700mAh) under laboratory conditions. The parameters are approximate and may vary between flashlights, batteries, and environments.
